Geberit SuperTube The space gaining system
All the components of the Geberit PE SuperTube system are designed to work together perfectly, allowing space-saving waste water installations in high-rise buildings.
Geberit HDPE SuperTube eliminates the need for a parallel ventilation pipe, creating more residential and floor space.
Using smaller diameter pipes allows smaller pipe ducts while still maintaining a high discharge capacity of 12 l/s when using pipes with d110.
Geberit SuperTube quick overview Here’s how the drainage system works
Conventional drainage systems in high-rise buildings generally require a lot of space for pipes with d160 and additional secondary ventilation pipes with d90. There also needs to be enough space below ceilings for horizontal pipes to have the correct slope. The discharge capacity of a conventional system is 12.4 l/s.
The hydraulically optimised Geberit SuperTube drainage system requires less room, creating additional living and working space. Geberit SuperTube technology creates a continuous column of air in the discharge stack. This allows the stack to reach a discharge capacity of 12 l/s with smaller pipes d110 and without any additional secondary ventilation. Horizontal pipes can be installed without a slope for up to 6 metres.
Space-saving installation
The comparison illustrates the difference:

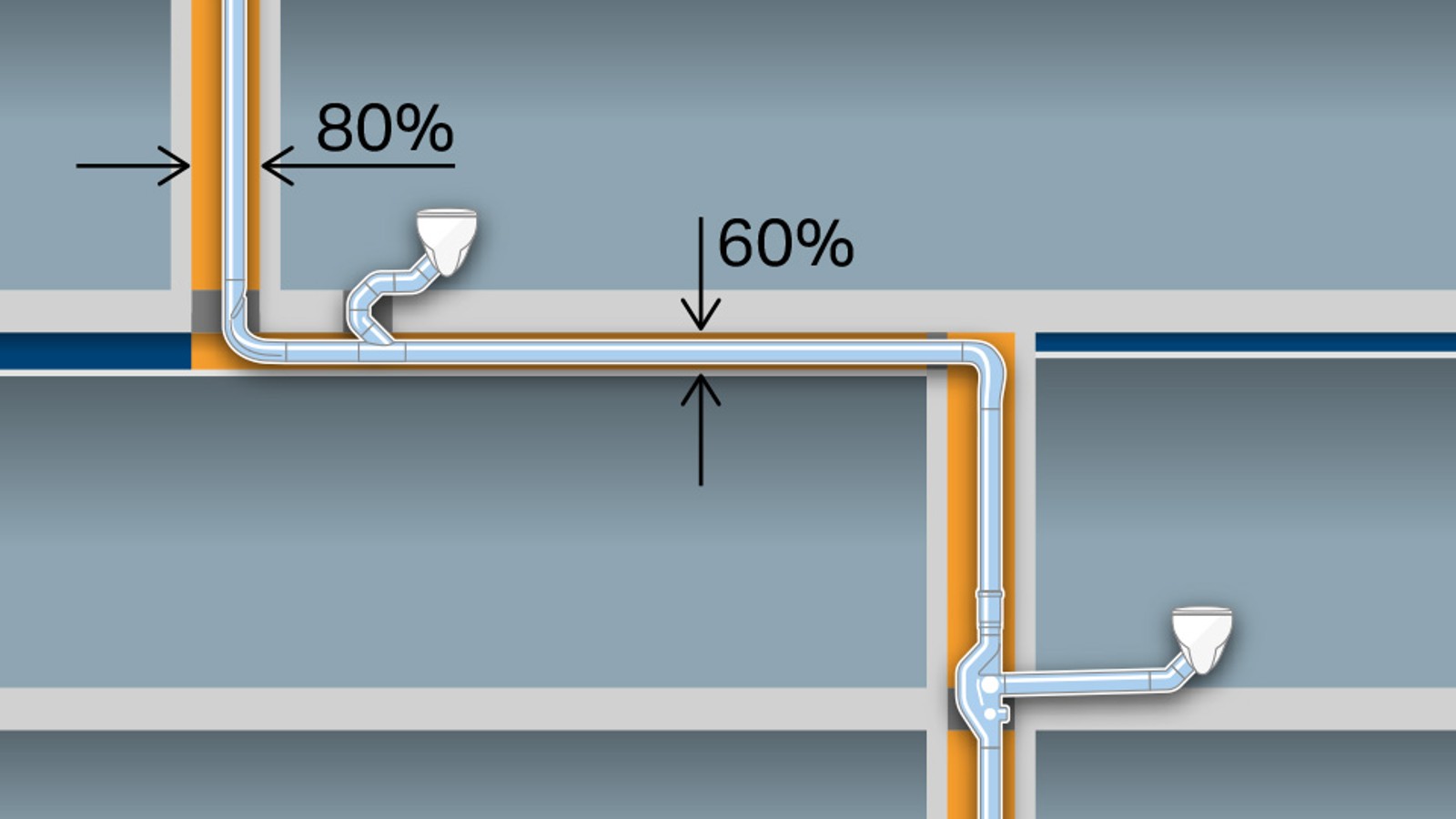

With Geberit SuperTube (illustration on left), the discharge capacity is 12 l/s. This technology facilitates a consistent discharge pipe with a pipe dimension of d110, meaning there is no need for a ventilation pipe. What's more, the horizontal pipelines can be laid to a length of up to six metres without a slope.

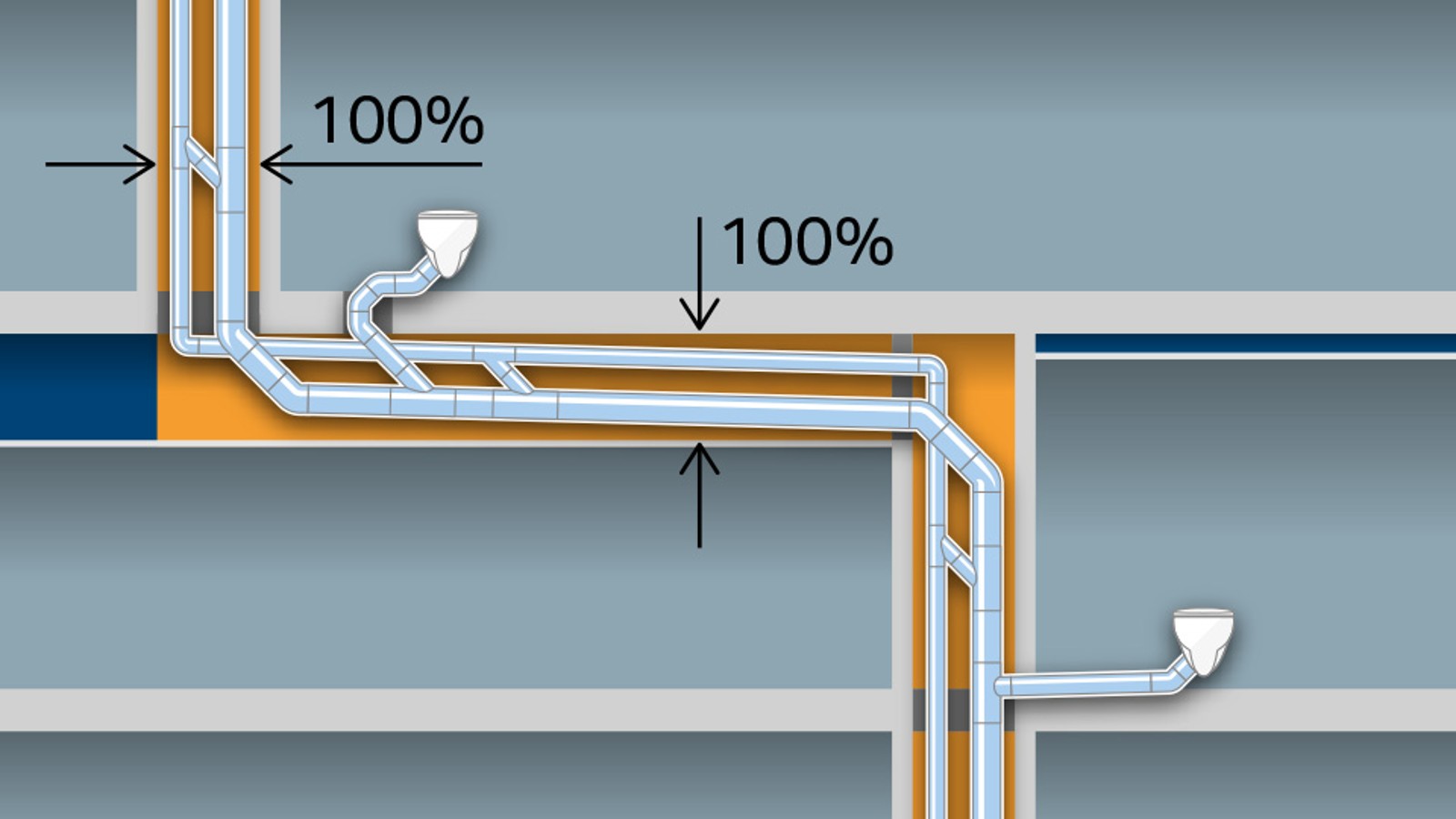

A conventional discharge pipe (illustration on right) achieves a discharge capacity of 12.4 l/s with pipe dimensions of d160 and an additional d90 ventilation pipe.
Useful planning tools for Geberit SuperTube
Geberit ProPlanner
You can use Geberit ProPlanner to convert a conventional drainage system into a Geberit SuperTube system in just a few steps. Geberit ProPlanner automatically replaces standard branches and bends with SuperTube fittings from Geberit PE.
Geberit BIM Plug-in
The Geberit BIM Plug-in for Autodesk® Revit® is an integrated tool that brings all Geberit planning and calculation tools for Autodesk Revit together in an integrated application.
BIM content for Geberit PE SuperTube fittings is also available in the catalogue module.
Three fittings make a crucial difference
Geberit HDPE Sovent fitting d110
The optimised product geometry of the Geberit HDPE Sovent fitting guides the water into the stack and sets it in rotation, which causes it to press against the pipe wall. The resulting annular flow creates a stable, continuous column of air on the inside, which facilitates a discharge capacity of 12 l/s.
Geberit HDPE BottomTurn bend
With the Geberit HDPE BottomTurn bend, a change in direction causes the wall of water to break and the annular flow to become a layered flow without disrupting the column of air. This change significantly reduces impulse losses compared with conventional solutions.
Geberit HDPE BackFlip bend
The twisted Geberit HDPE BackFlip bend causes the layered flow of water to swirl, which allows it to rotate through the vertical pipeline as it drains away in an annular flow. The inner air column in the subsequent stack is maintained.
Geberit SuperTube Dimensioning Tool
Please complete the form below if you would like access to the Geberit SuperTube Dimensioning Tool to determine the required pipe diameter.
