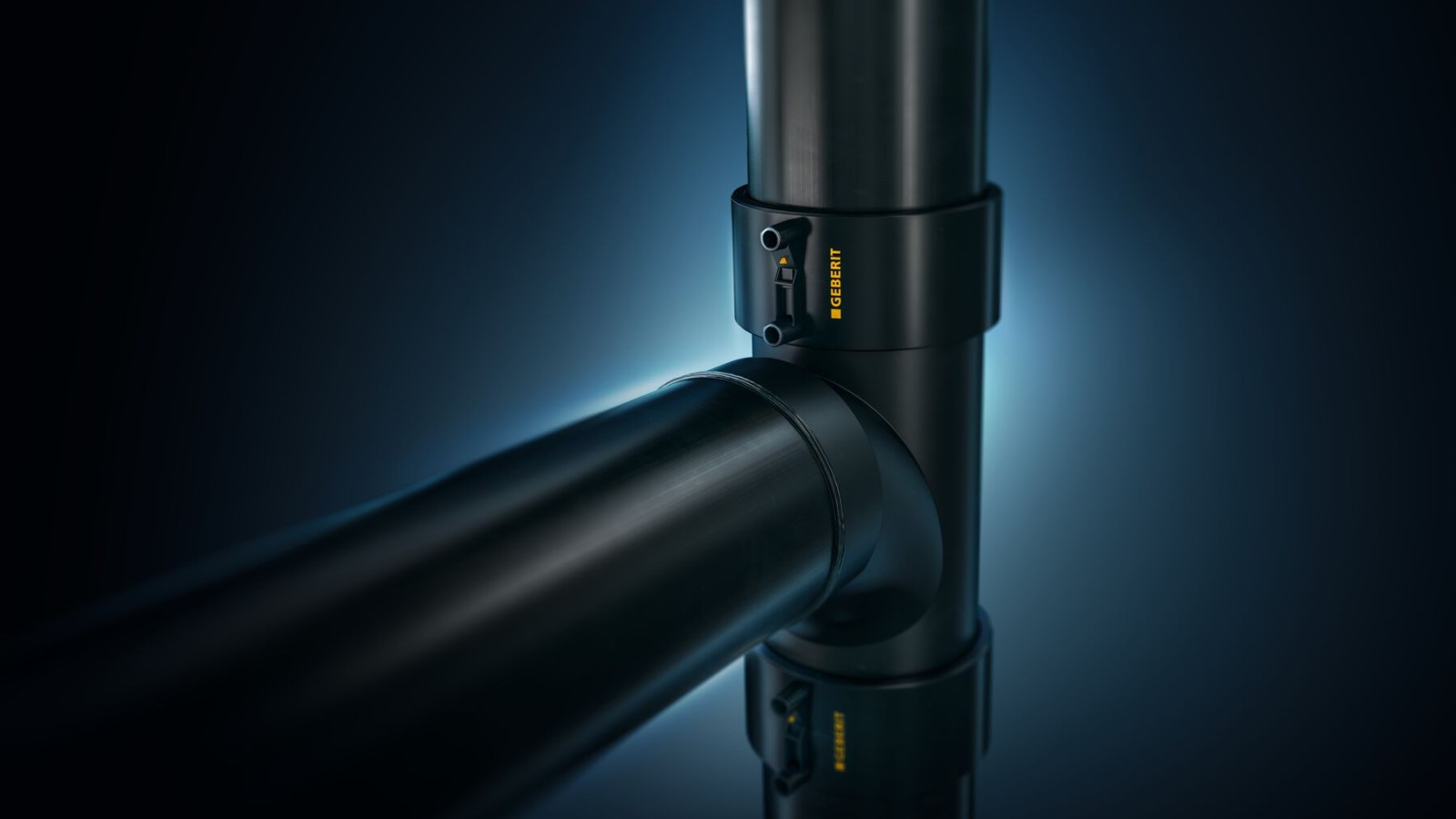

Geberit HDPE Robust resistance no matter what
Durable HDPE pipes – ready for anything
The high density polyethylene (HDPE) pipe material is extremely lightweight yet impressively durable. The Geberit HDPE drainage system is capable of withstanding major temperature fluctuations, pressure, and aggressive chemicals such as alkalis and acids. The robust Geberit HDPE pipes are available in all standard diameters ranging from d32 to d315, and the range of fittings – including the special fittings – is as comprehensive as it gets.
The non-positive connection technology allows Geberit HDPE to be used in a wide range of applications without special sound insulation requirements, such as embedding in concrete or for building and roof drainage.
Systems can either be installed directly on site or preassembled at the workshop.
Geberit HDPE is also available in combination with the space-saving Geberit SuperTube technology.
Why choose Geberit HDPE?
Non-positive connection
The non-positive connection technology can be used for virtually any drainage application.
Resistant to chemicals
The Geberit HDPE drainage system is resistant to most standard alkalis, acids and chemicals.
High discharge capacity and more living space
Geberit HDPE is hydraulically optimised for greater cost-efficiency with reduced space requirements while ensuring high discharge capacity.
Suitable for walls and floors
The robust Geberit HDPE pipes can be laid in concrete or in the ground.
Overview of Geberit HDPE
Dimensions
Available pipe dimensions
| Nominal width (DN) | Dimension d x s (mm) |
|---|---|
| 40 | 40 x 3 |
| 50 | 50 x 3 |
| 56 | 56 x 3 |
| 60 | 63 x 3 |
| 70 | 75 x 3 |
| 90 | 90 x 3.5 |
| 100 | 110 x 4.3 |
| 125 | 125 x 4.9 |
| 150 | 160 x 6.2 |
| 200 | 200 x 6.2 |
| 250 | 250 x 7.8 |
| 300 | 315 x 9.8 |
Fittings
Product range For virtually any drainage application

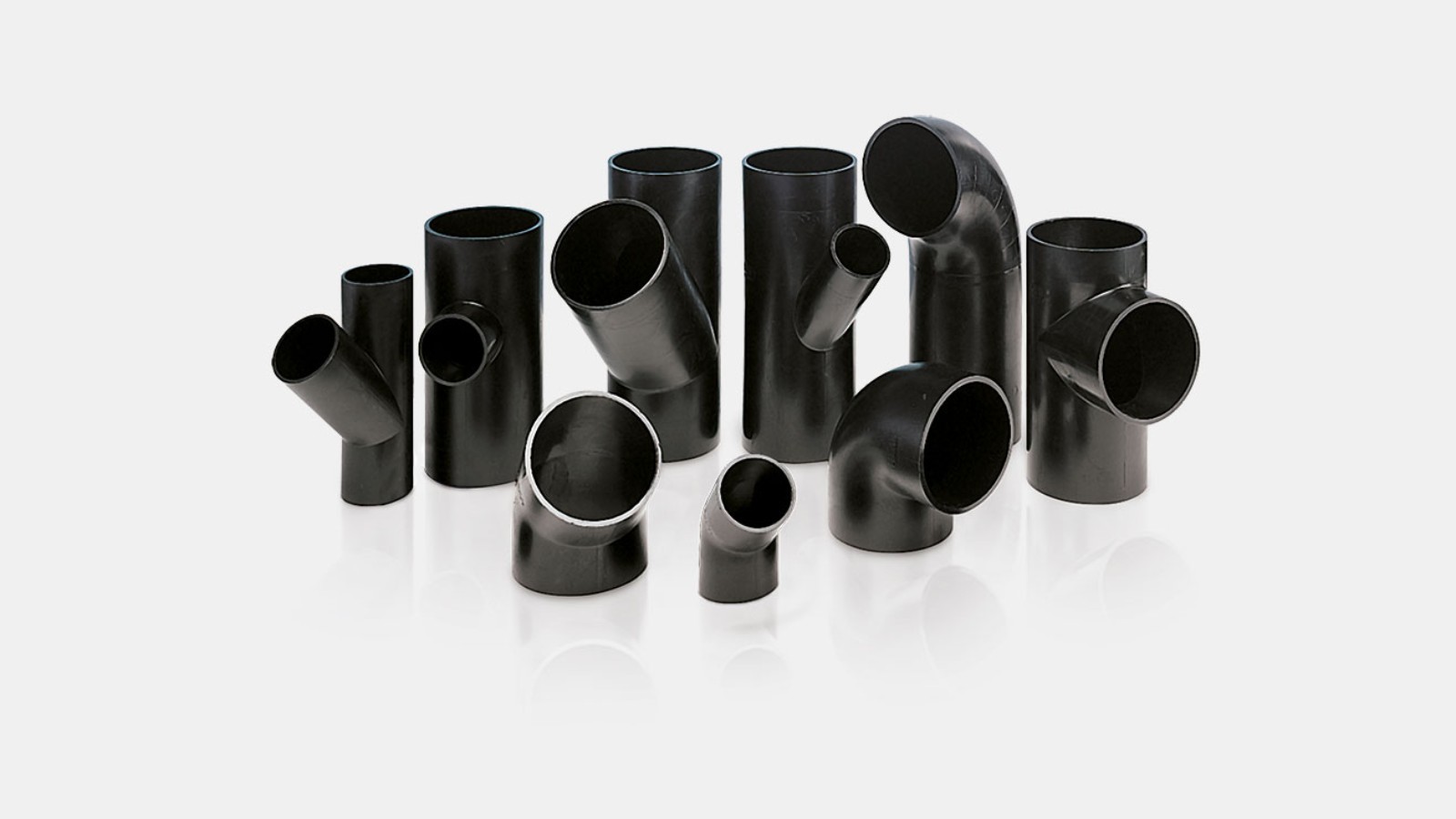

Available fittings
The Geberit HDPE assortment includes a wide variety of fittings, including a full range of special fittings.
This means almost any drainage application can be handled with Geberit HDPE – no compromises needed.

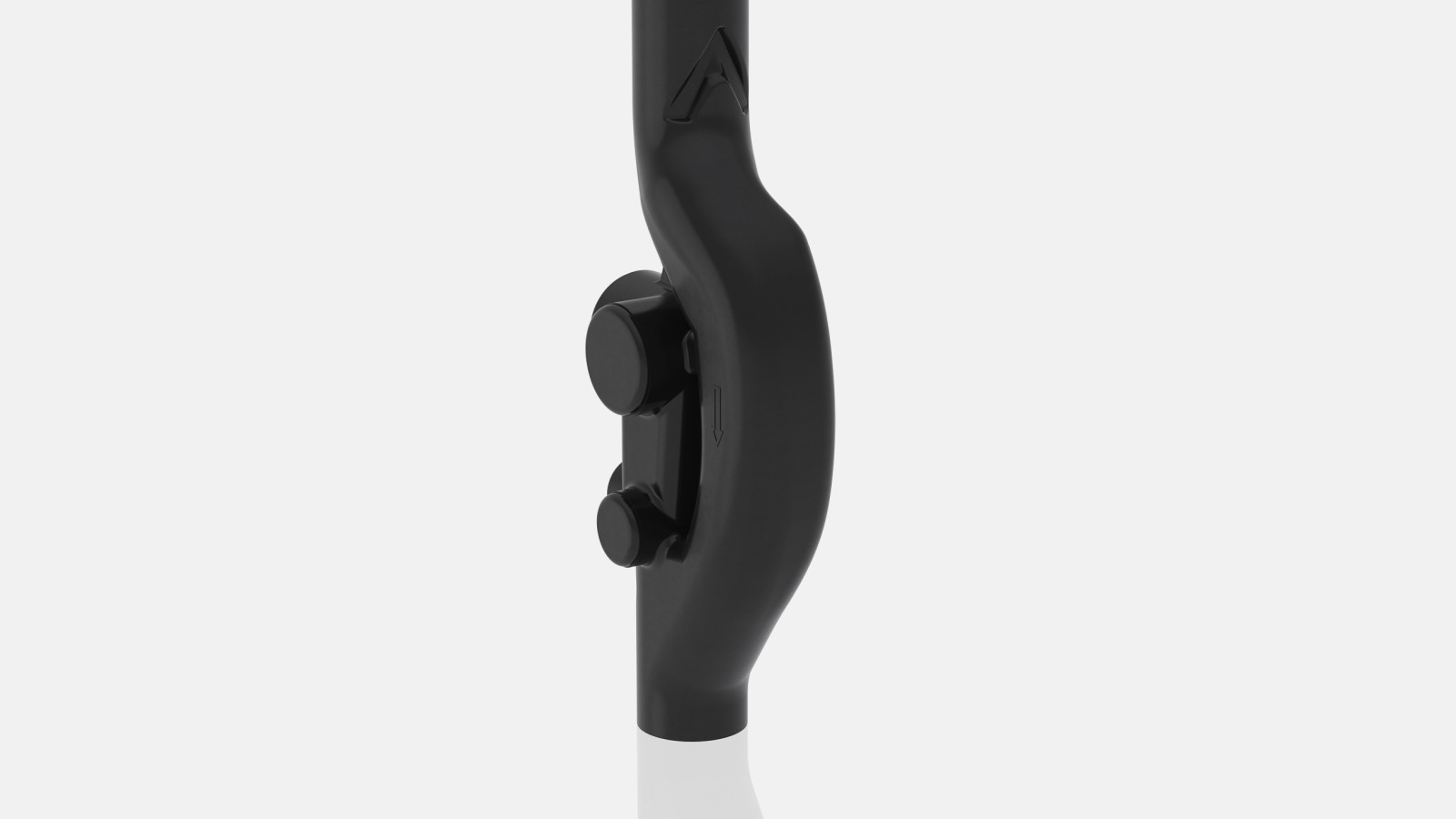

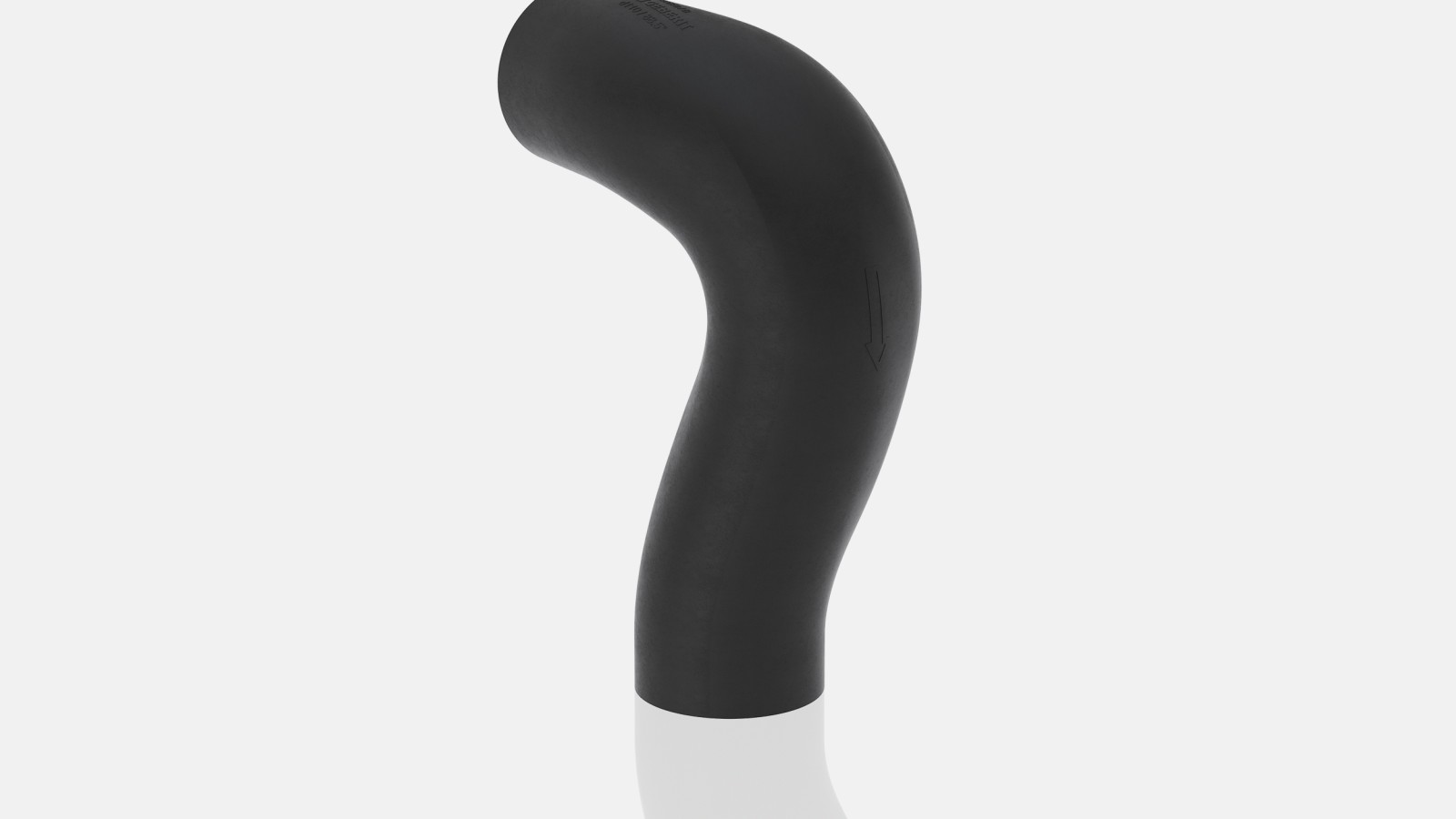

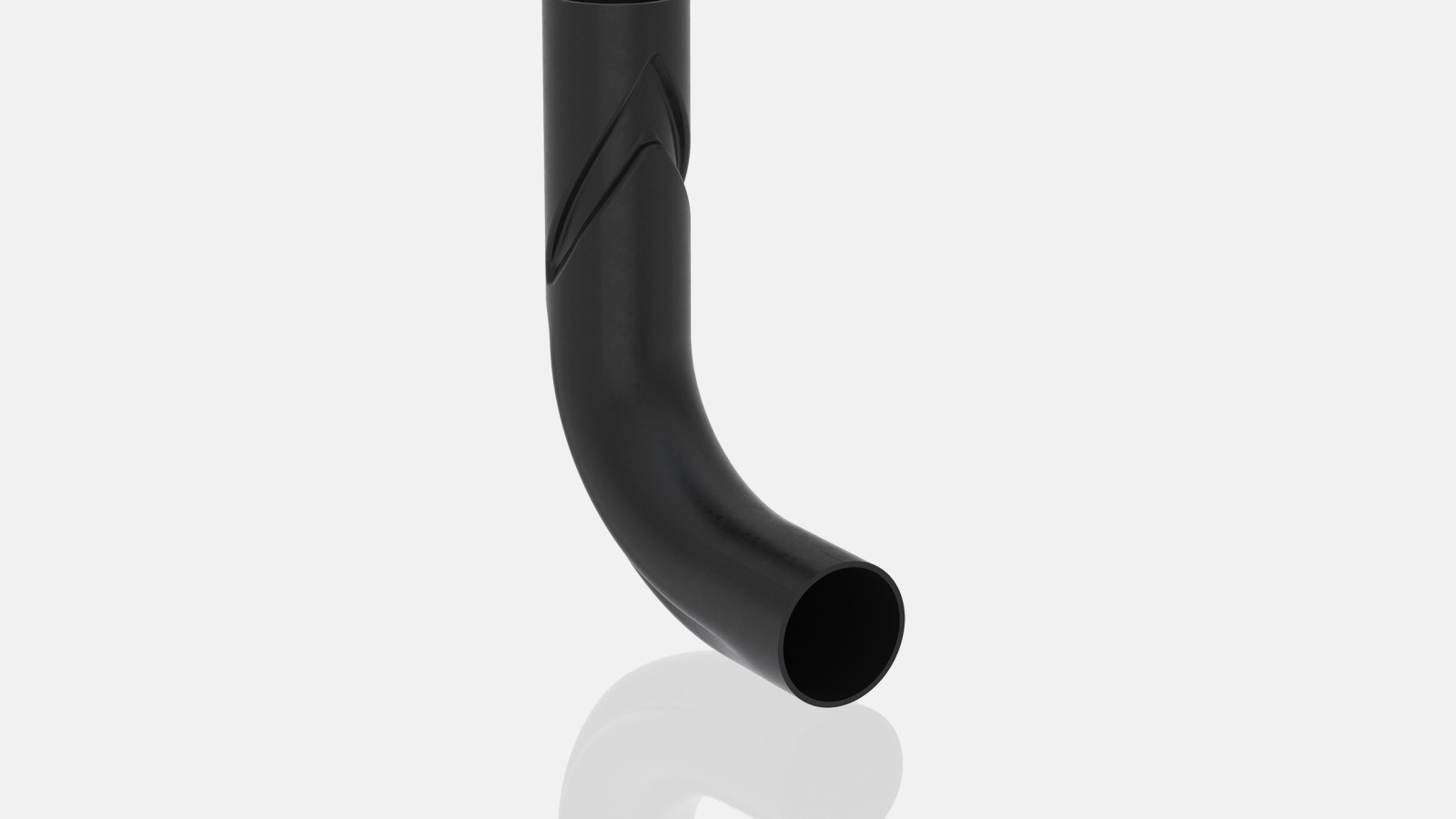

Geberit SuperTube
Space-saving drainage of high-rise buildings using fittings with SuperTube technology:
- More residential and floor space
- Simple planning and installation
- Smaller, consistent pipe diameters
- No additional ventilation pipes
- Horizontal pipelines without slopes (up to six metres)
Technical data
Overview
| Geberit PE | |
|---|---|
| Material | PE-HD |
| Coefficient of linear expansion | 0.17 mm/(m K) |
| Absorption of linear expansion | Requires expansion socket |
| Installation temperature | -20 to 40°C |
| Permanent load application temperature | -20 to 80°C |
| Chemical resistance | 95% of all standard alkalis, acids and chemicals |
Environmental product declaration
Environmental product declaration (EPD)
Environmental product declarations (EPDs) create transparency and allow products to be compared in terms of their environmental impact.
EPDs are available for Geberit PE pipes and all key fittings:
Useful planning tools
Geberit BIM Plug-In
Geberit offers manufacturer-specific BIM content in addition to conventional CAD data and intelligent tools to support MEP design and planning. This facilitates MEP design and planning with Geberit products in the Autodesk® Revit® planning software from early stages of design to facility management.

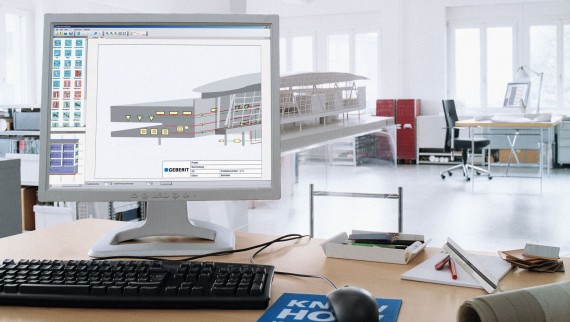

Geberit ProPlanner
Geberit ProPlanner can be used to design and optimise the configuration of the overall system, by determining the required number of roof outlets and pipe diameters. With just a few clicks, a fully dimensional and calculated plan is created. Isometric drawings, hydraulic certificates and material lists are available as outputs.
Suitable for laying in concrete
Geberit PE pipes can also be laid in concrete thanks to their non-positive welding joints. The Geberit cast-in concrete bracket ensures accurate positioning and secure fixing, offering a user-friendly, flexible solution that can withstand the forces of flowing concrete.
Discover similar content

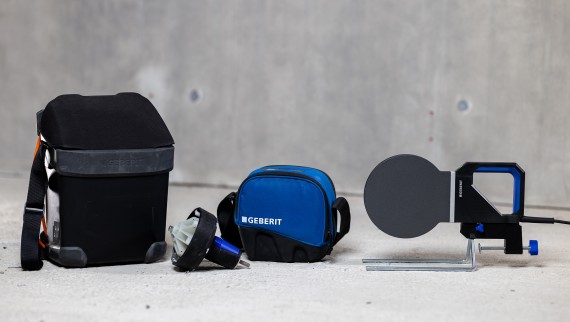

Geberit Tools for Drainage Systems
Geberit HDPE pipes and fittings can be welded together. Butt welding and electrofusion sleeve couplings are well suited to this application. Geberit offers a range of modern, highly efficient welding tools for this purpose.
Geberit Pluvia
Geberit Pluvia is a high-performance siphonic roof drainage system. Reliable, economical and with maximum design freedom for architects.
Geberit SuperTube
Optimised hydraulics in high-rise buildings to provide more residential and floor space. A parallel ventilation pipe installation is no longer required.
Video
All technical information about Geberit HDPE CAN BE FOUND IN THE PRODUCT CATALOGUE

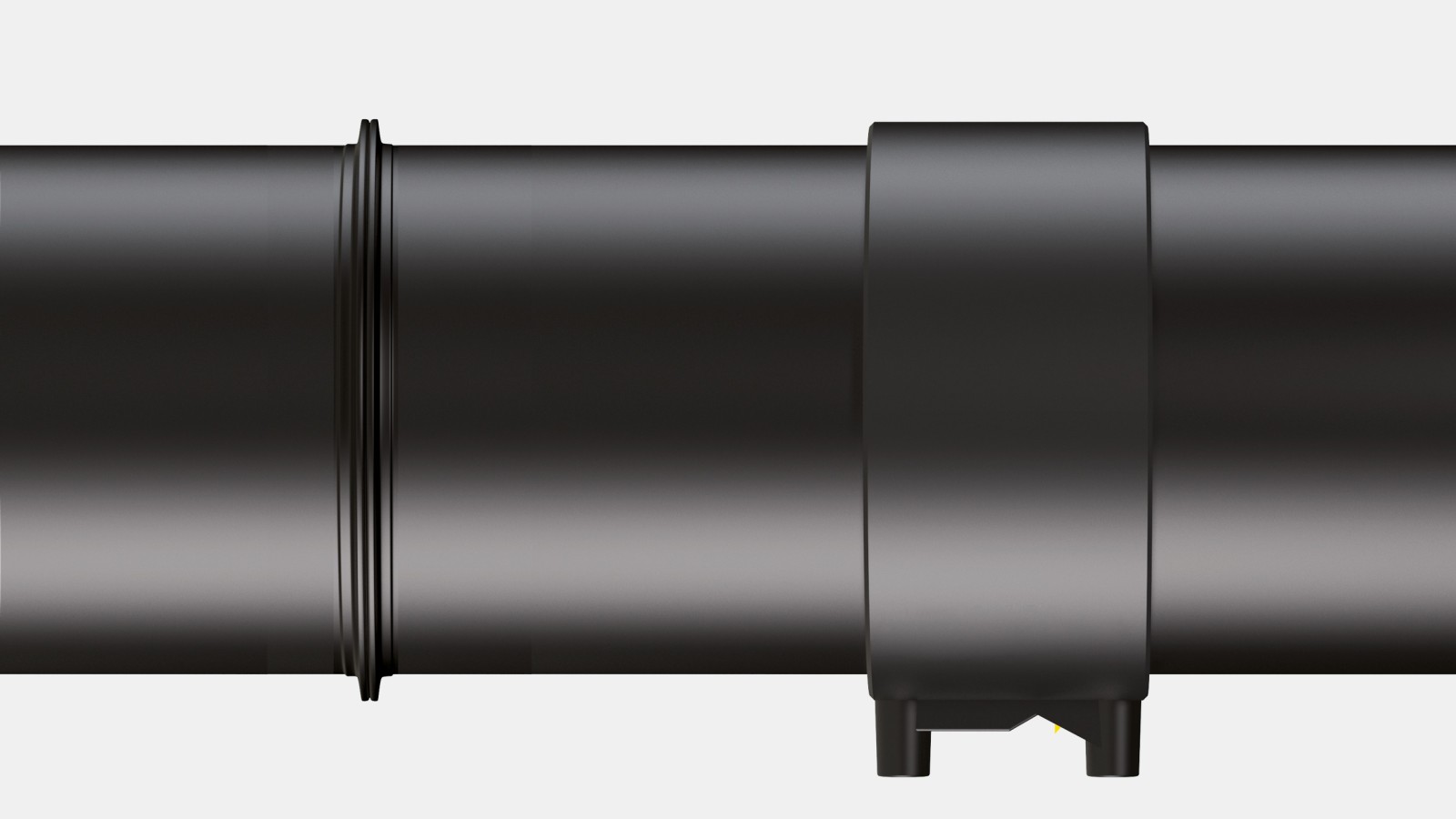

Connection technologies for Geberit HDPE With non-positive connection
Geberit PE pipes and fittings are welded quickly and easily to form a permanent leakproof seal. Welding joints are made either using butt welding equipment or the Geberit electrofusion coupling, with a full range of tools available.
The welding joints of Geberit PE pipes remain reliably leakproof for many years, offering real peace of mind to building owners and plumbers alike. These welding joints are also suitable for prefabrication and laying the pipes in concrete.
