Geberit tools for drainage systems well-thought-out, reliable machines

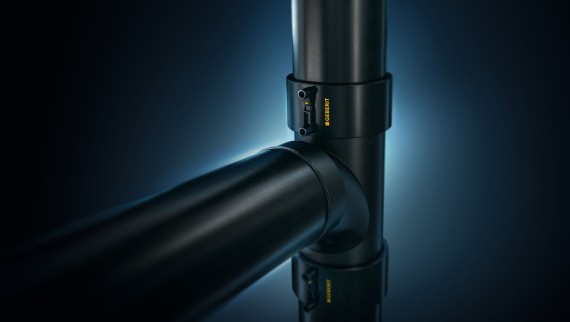

The pipes and fittings in the Geberit HDPE ranges can be used in a variety of applications. The piping systems are welded, creating a strong and durable connection.

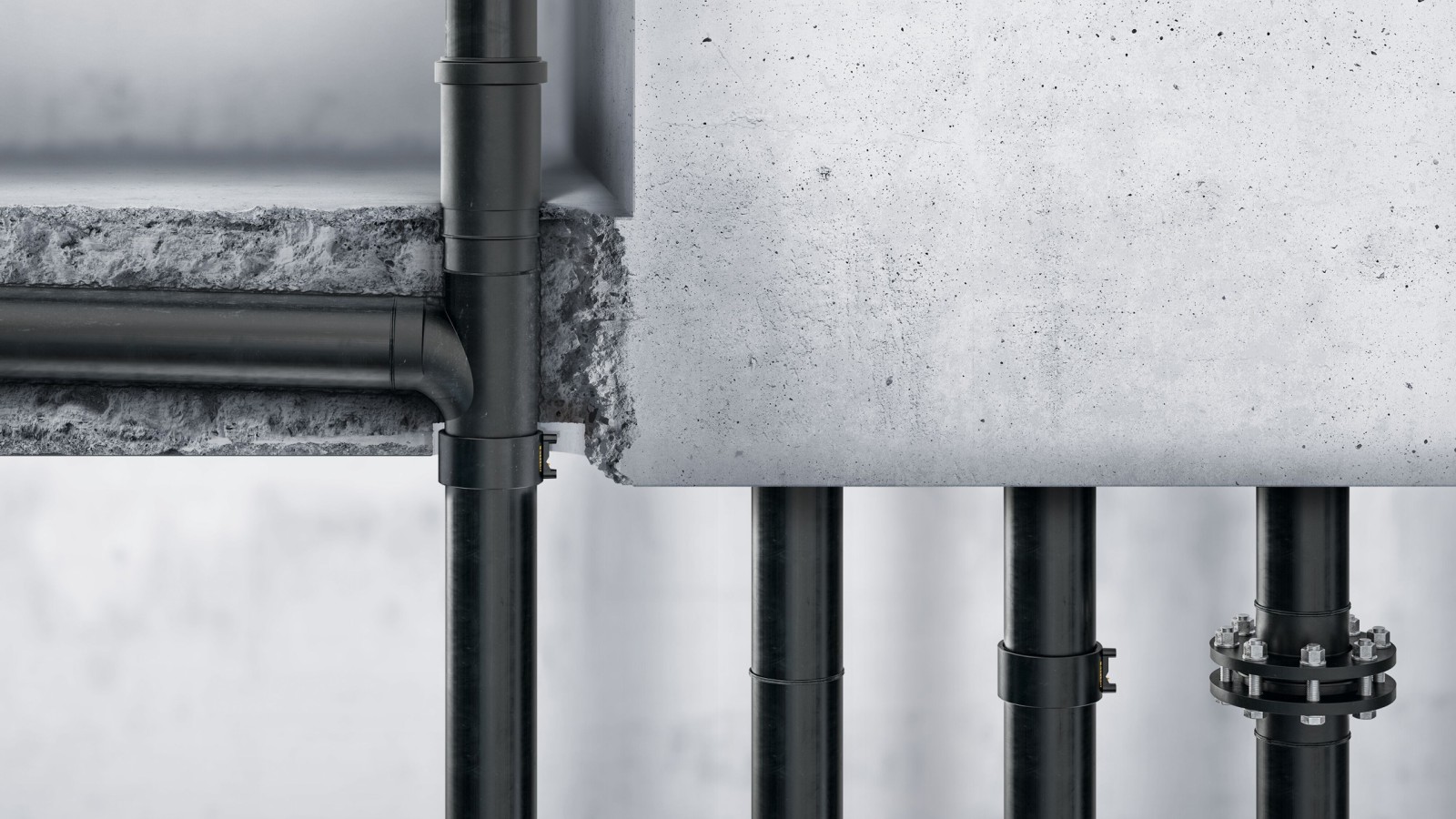

Thanks to their secure welding joints and robust material properties, Geberit HDPE drainage systems are suitable for laying in concrete.
Geberit also offers a full range of tools, welding equipment and additional accessories to support plumbers on site.
Tools for welded piping systems
Electrofusion tools
Available tools

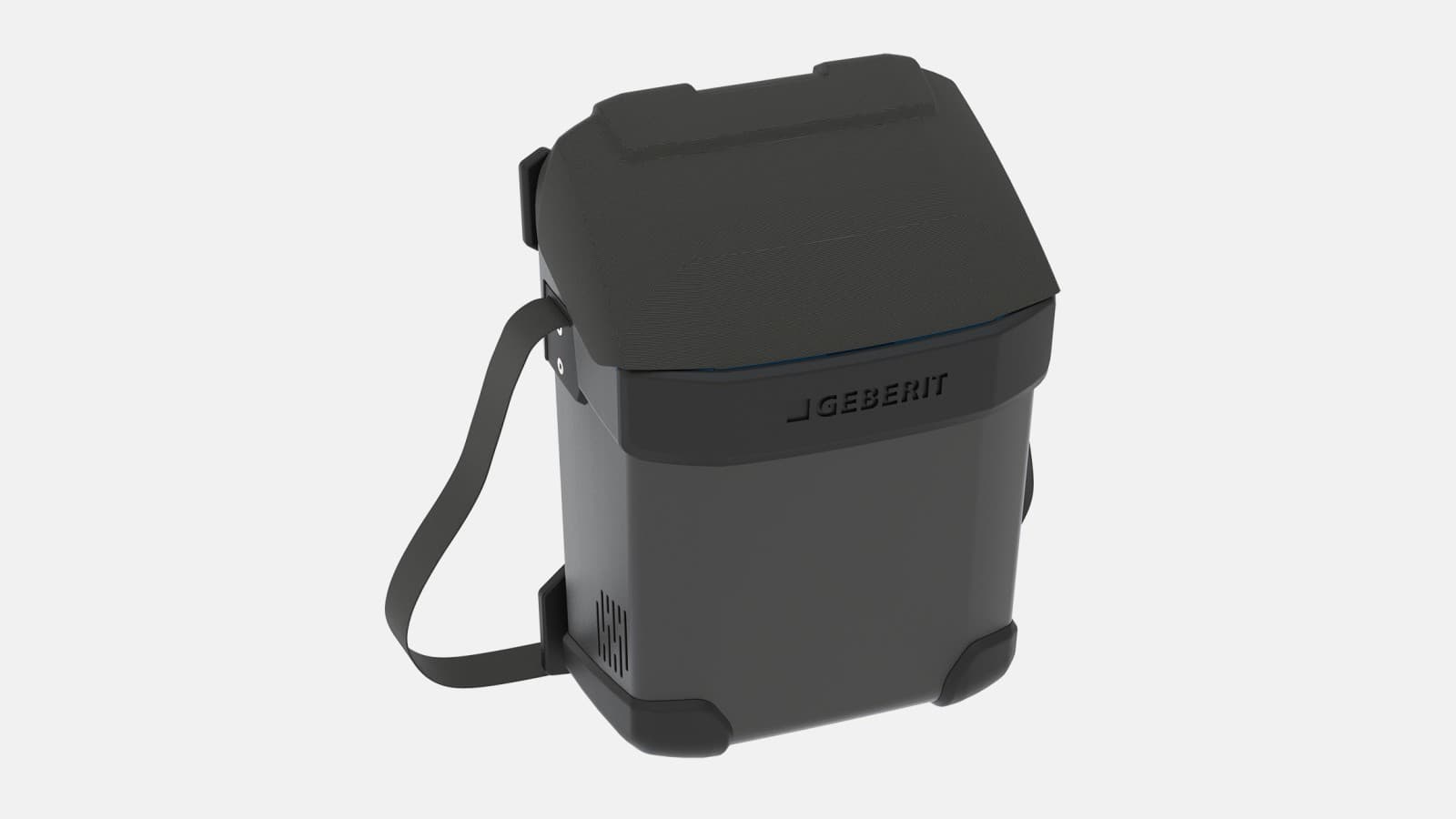

Geberit ESG 3
- A welding tool for all pipe dimensions from DN 40 to DN 300
- Simultaneous welding of up to three electrofusion couplings saves time
- Remote control facilitates installation work
- Robust design for everyday building site work
- Can be operated with a generator thanks to built-in overvoltage protection

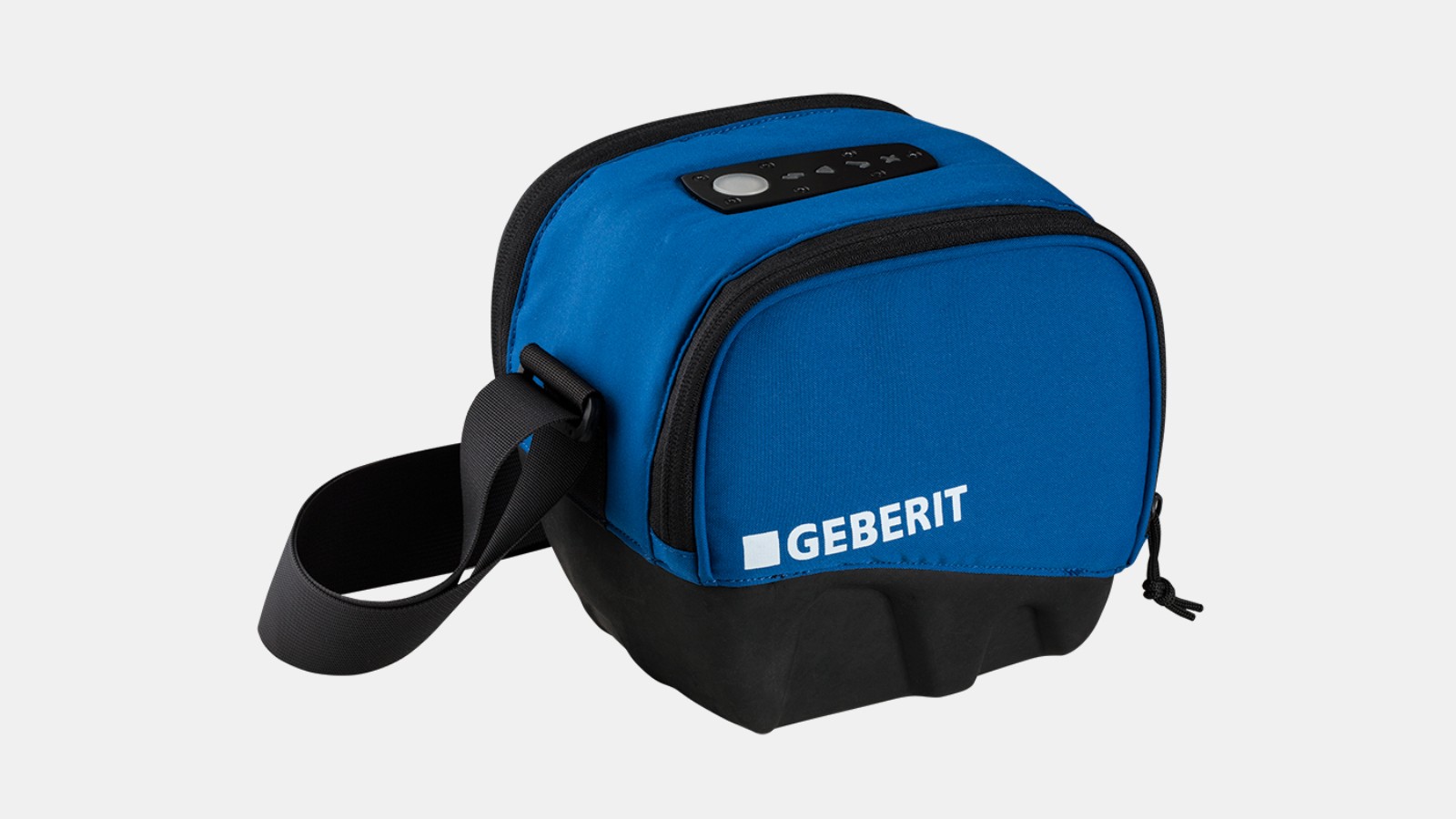

Geberit ESG light
- A lightweight and compact welding tool for easy handling on the building site.
Geberit ESG 3 and ESG Light side by side
| Geberit electrofusion tool | Geberit ESG 3 | Geberit ESG light |
|---|---|---|
| d40–d160 | ||
| d200–d315 | ||
| Electrofusion couplings | ||
| Electrofusion tapes | ||
| Electrofusion couplings with integrated thermal fuse | ||
| Quick exchange of the connecting cable for electrofusion coupling | ||
| Fall impact cushioning | ||
| Right angle plug | ||
| Remote control | ||
| Simultaneous welding of up to three electrofusion couplings | ||
| Ability to interrupt the welding procedure | ||
| Operation with power supplier (generator) | ||
| Weight in kg | 5.9 | 2.0 |
Butt-welding tools
Available tools
Geberit welding plate
- Three models to choose from: KSS-160 (d32–160 mm), KSS-200 (d32–200 mm) and KSS-315 (d200–315 mm)
- Use of the KSS-160 welding plate, either floor-standing or mounted on the work top
- KSS-160 model fits the Geberit Media and Universal welding machines
- KSS-200 and KSS-315 models can be used in the Geberit Universal welding machine
- Long service life and easy cleaning thanks to optimised polymer coating
- Ergonomic grip options for safe welding work
- Ready for operation at 220°C in just a few minutes
Geberit Media welding machine d40–160
- Robust base element for welding accessories up to d160 mm
- Retainer for welding plate support and plane
- Swivelling welding plate support
- Swivelling pipe support
- Movable work top
Geberit Universal welding machine d40-315
- Robust base element for welding accessories up to d315 mm
- Retainer for welding plate support and plane
- Swivelling welding plate support
- Swivelling pipe support
- Movable work top
- Hand wheel
Pipe working tools
Geberit pipe scraper
A pipe or fitting can be prepared for welding in no time using a Geberit electrofusion coupling.
Features:
- For Geberit HDPE
- Can be used with standard cordless drill drivers
- Ideal in narrow areas or areas that are difficult to access
- Scraping knife that can be quickly and easily replaced
- Available for various diameters: d56, d63, d75, d90 and d110
