Geberit Sovent ECONOMICAL DRAINAGE OF HIGH-RISE BUILDINGS

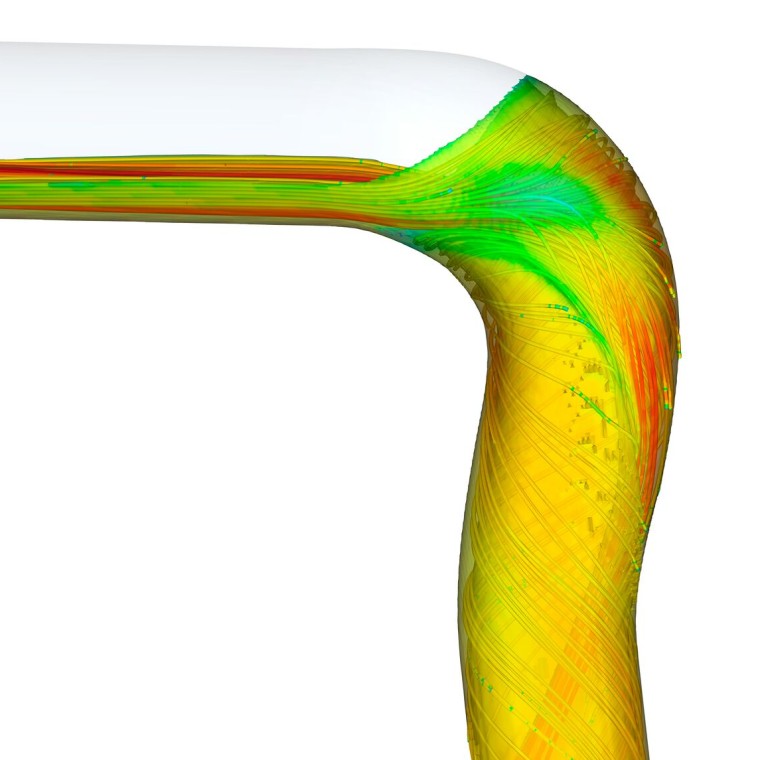

OPTIMISED FLOW

The flow-optimised Geberit HDPE Sovent fittings facilitate an inexpensive layout of stacks in tall buildings. They enhance the pipe capacity several times over and dispense with the need to install a parallel ventilation pipe.

Geberit Sovent can be used as part of the Geberit SuperTube System

ECONOMICAL ALTERNATIVE

sovent
  • Outstanding discharge rate of 12 l/s in the dimension DN 100 and 17 l/s in the dimension DN 150.
  • Patented flow guidance.
  • Allows a relatively small pipe dimension of DN 100 to be used even in many high-rise buildings.
  • Saves money and space in the pipe duct thanks to fewer and smaller dimensioned pipes.
  • Can be combined with the Geberit HDPE drainage systems.

INCREASED DISCHARGE CAPACITY IN A COMPACT DESIGN

Conventional Connection

CONVENTIONAL CONNECTION

  • Water in the discharge stack meets water from the floor pipe.
  • Rapidly changing pressure situations without additional ventilation would lead to empty suctioning or blowing of the discharge stack.
  • Additional ventilating pipe required.
Geberit HDPE Sovent Fitting

GEBERIT HDPE SOVENT FITTING

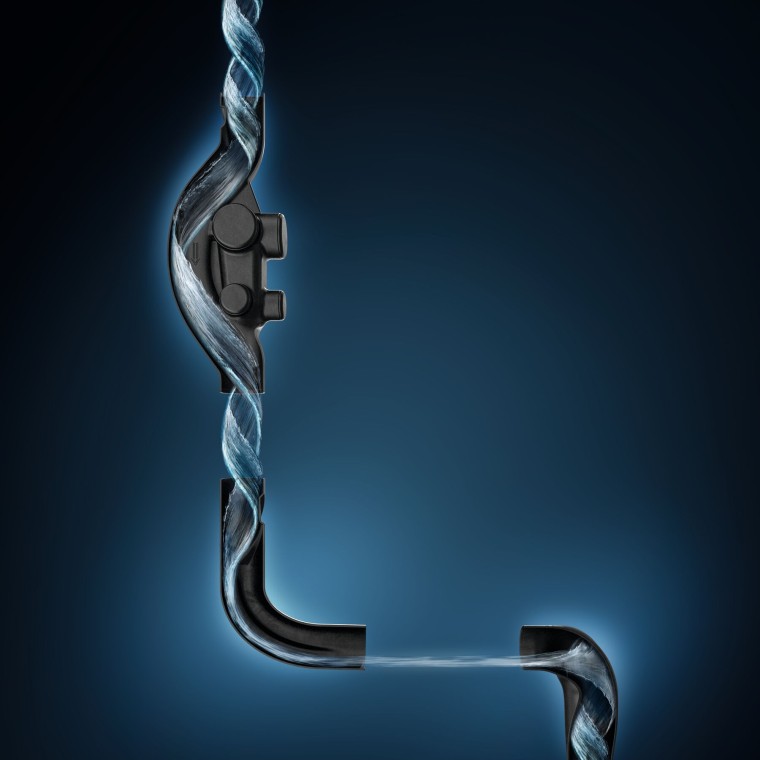

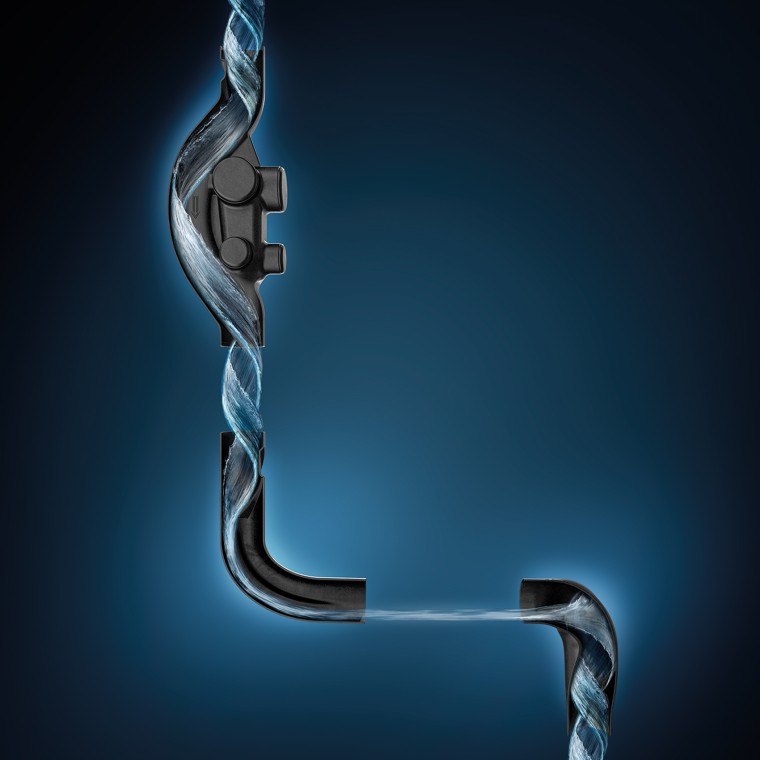

  • The design separates the water of the stack and floor pipe.
  • Pressure compensation takes place within the stack.
  • Small stack, no additional ventilating pipe required.
  • Saves costs and space.

SYSTEM COMPATIBLE

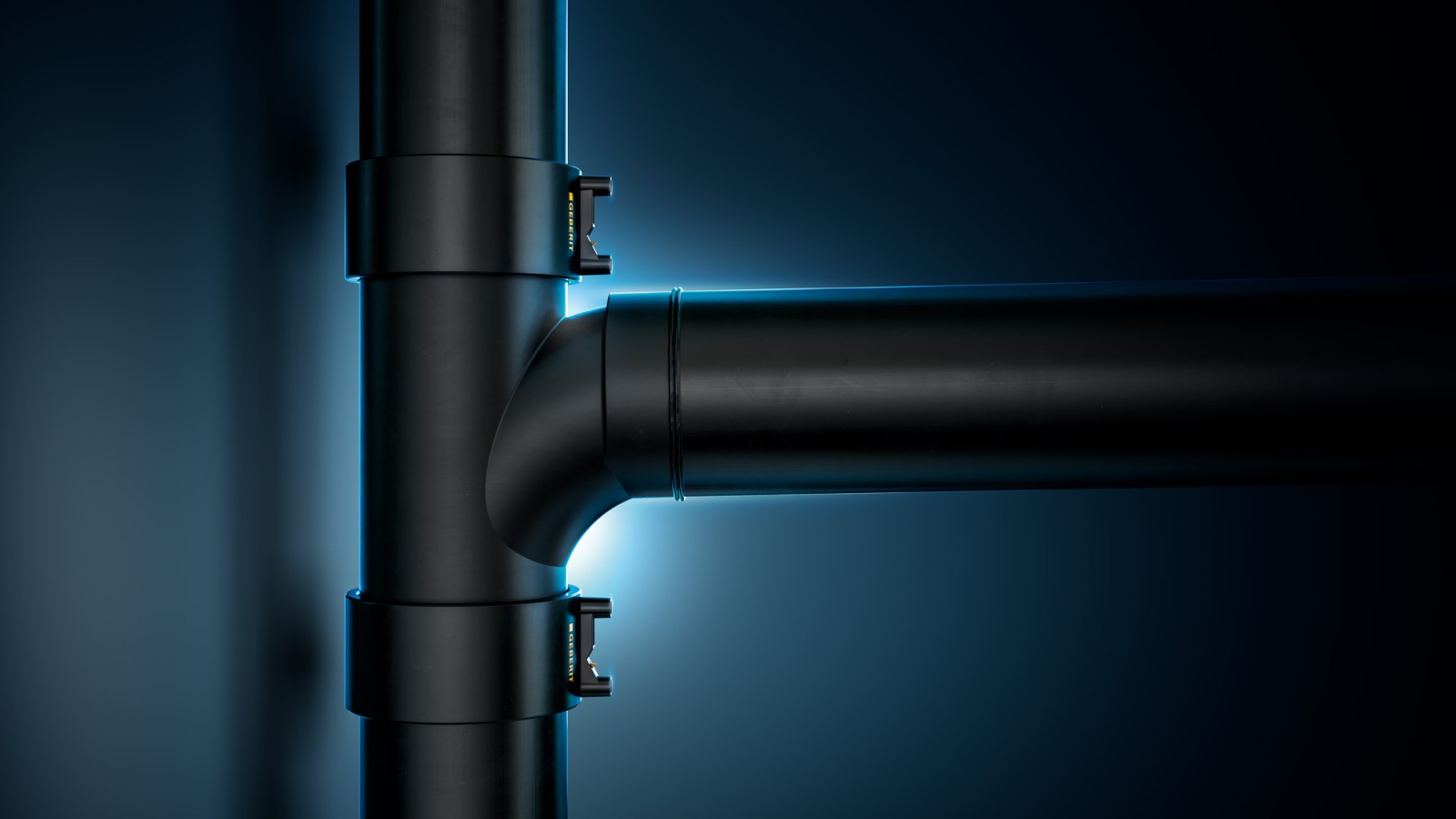

The Geberit HDPE Sovent fitting is available for discharge stacks with a diameter of 110 or 160 mm. The fitting can be combined with Geberit HDPE pipes and fittings and within the Geberit SuperTube system.

GEBERIT HDPE SOVENT FUNCTION FILM

Activate Geberit video content

ALL TECHNICAL INFORMATION ABOUT GEBERIT SOVENT CAN BE FOUND IN THE ONLINE CATALOGUE
